3.3V D Cell + Supercap Battery Datasheet

Explore 3.3V D Cell + Supercap Battery

Click Here

Overview

Thionyl Chloride Lithium Battery 3.3V D Cell + Supercapacitor Battery for Enterprise Line Sensors.

Specifications:

  • Type of battery: Lithium
  • Cell size: D,R20
  • Nominal capacity(@ 500mA @ 1% duty cycle): 19Ah.
  • Nominal Voltage: 3.6V.
  • Max. Pulse length @ 500mA to 2.8V: 1000 seconds.
  • Max. 1s pulse current to 3.2V: 3.0A.
  • Delay time to 3.0V @ 500mA: No Delay.
  • Operating temperature range: -40 ~ +85℃.
  • Weight: 114g.
  • Capacity retention after 10 years: 90%.
  • Battery Body dimensions: Ø33.6x59mm.

Drawings

Dcell Battery Draw
Dimensions in mm

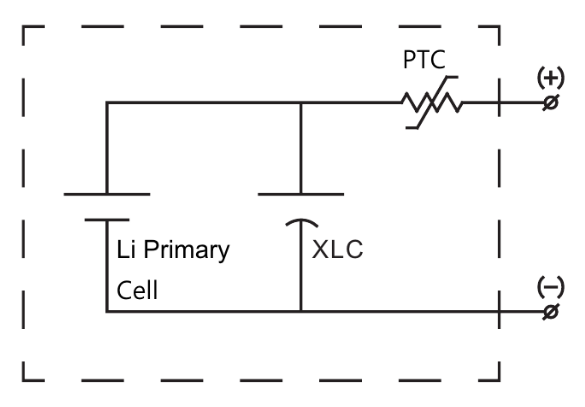

Schematic

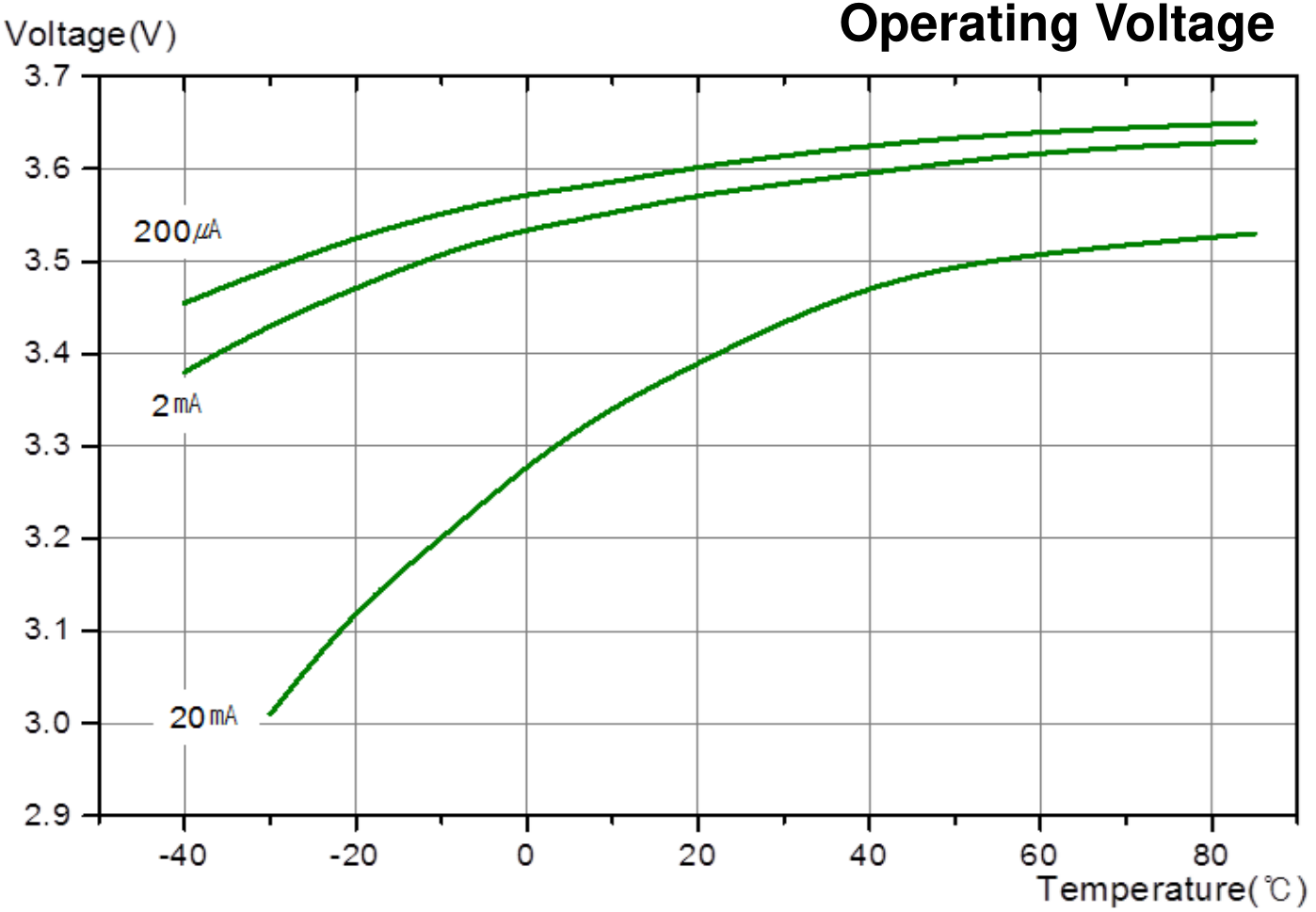

Charts

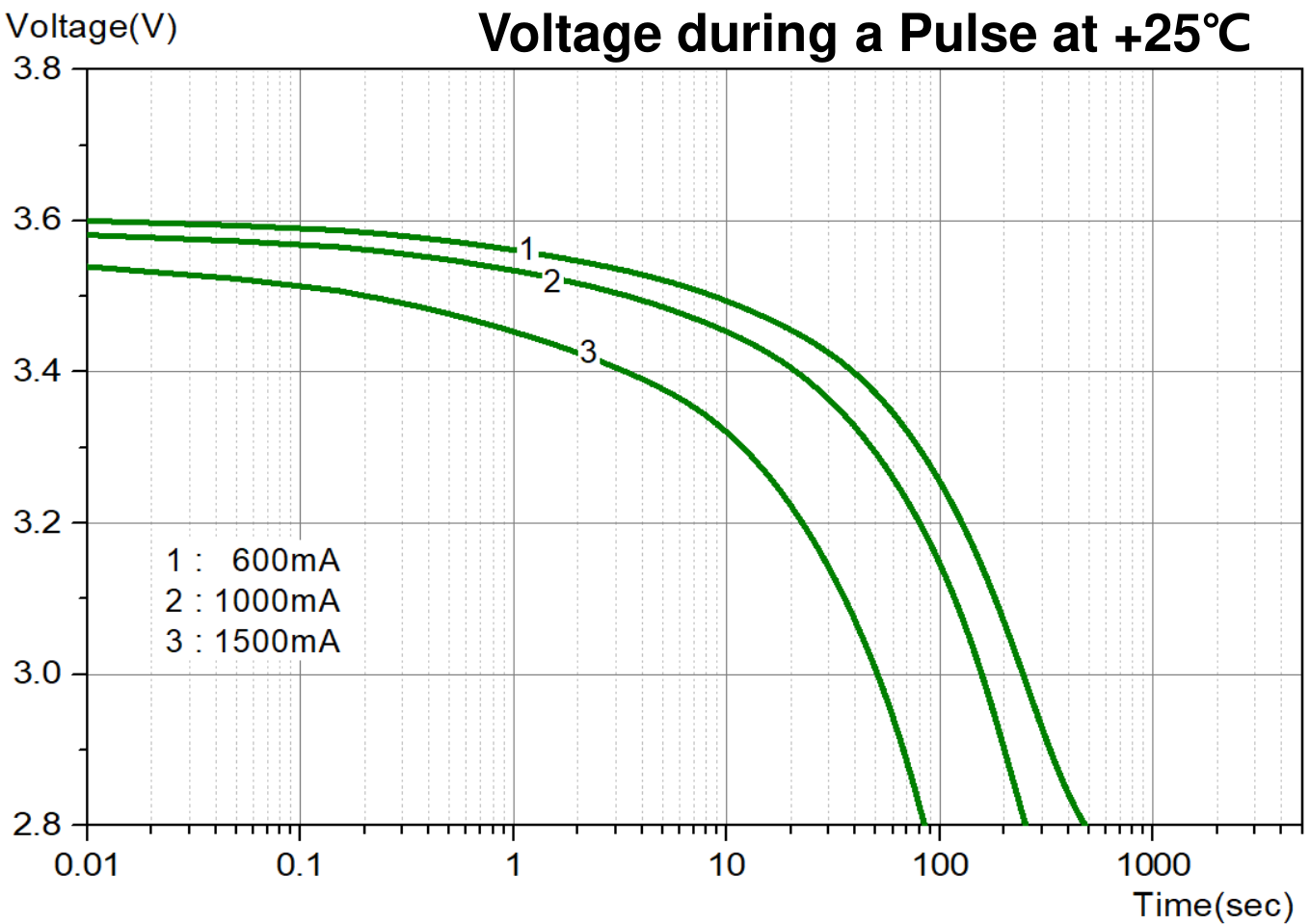

D cell battery voltage during a pulse chart

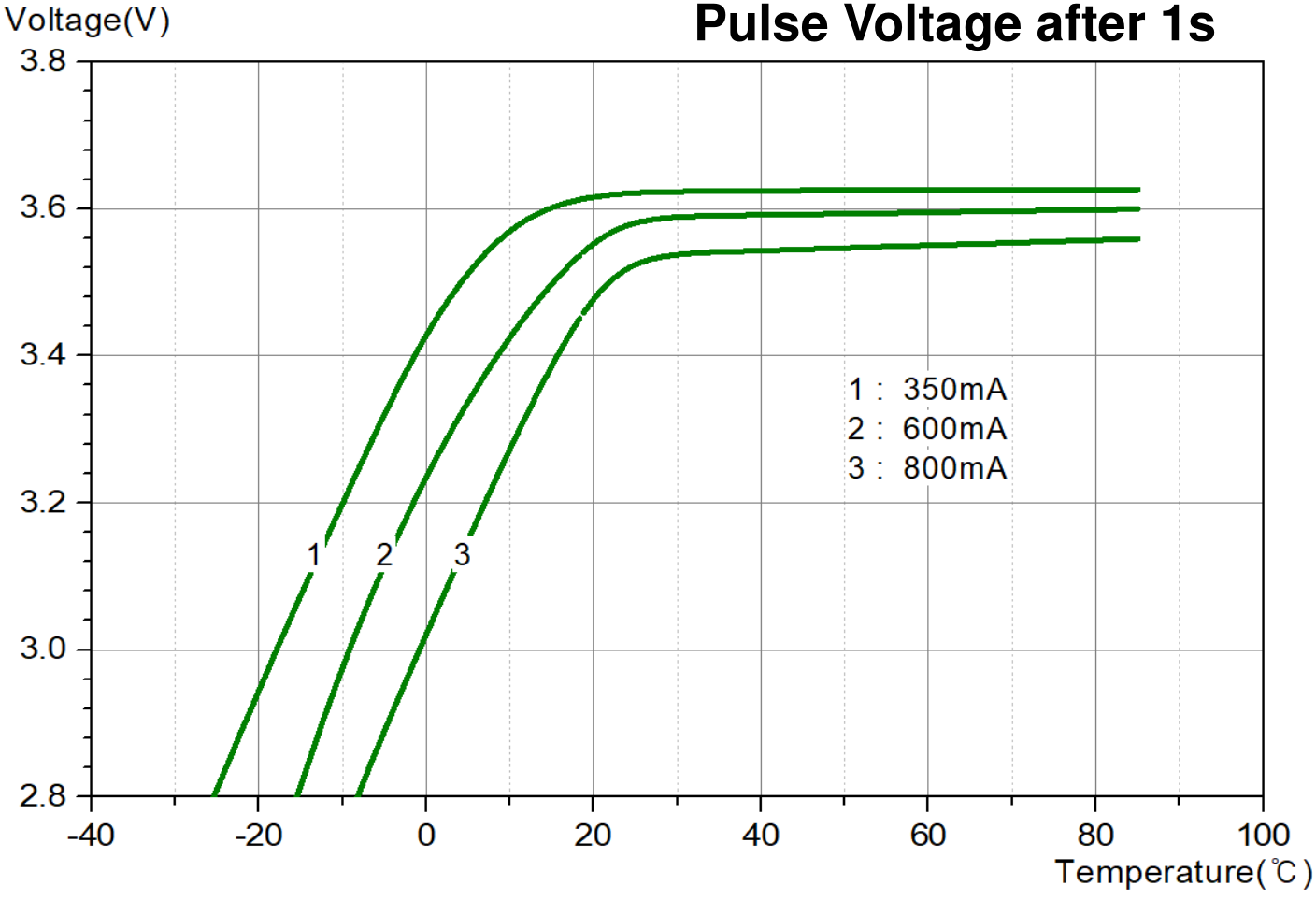

D cell Pulse Voltage After 1 second chart

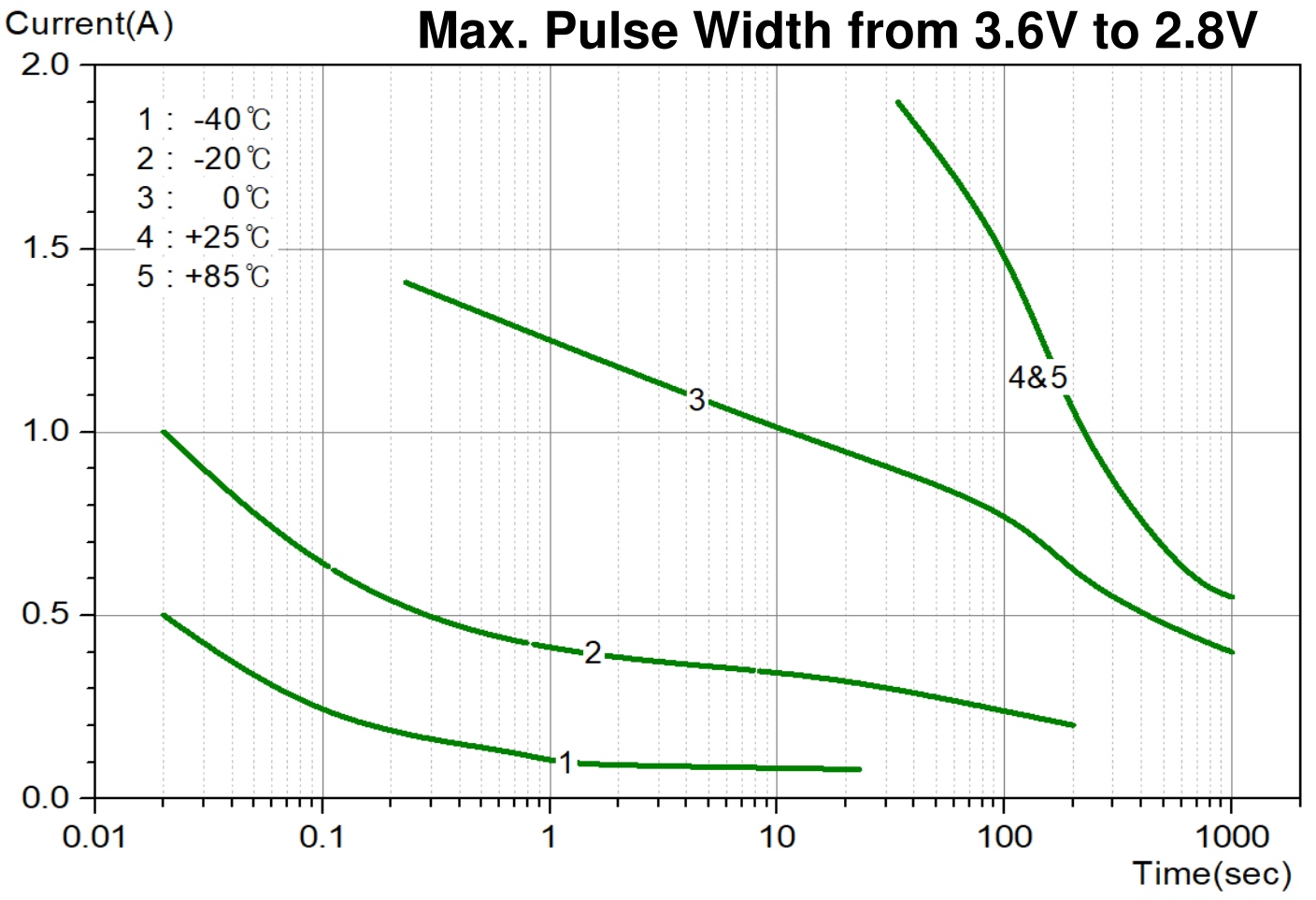

D cell battery Max Pulse Width from 3.6V to 2.8V

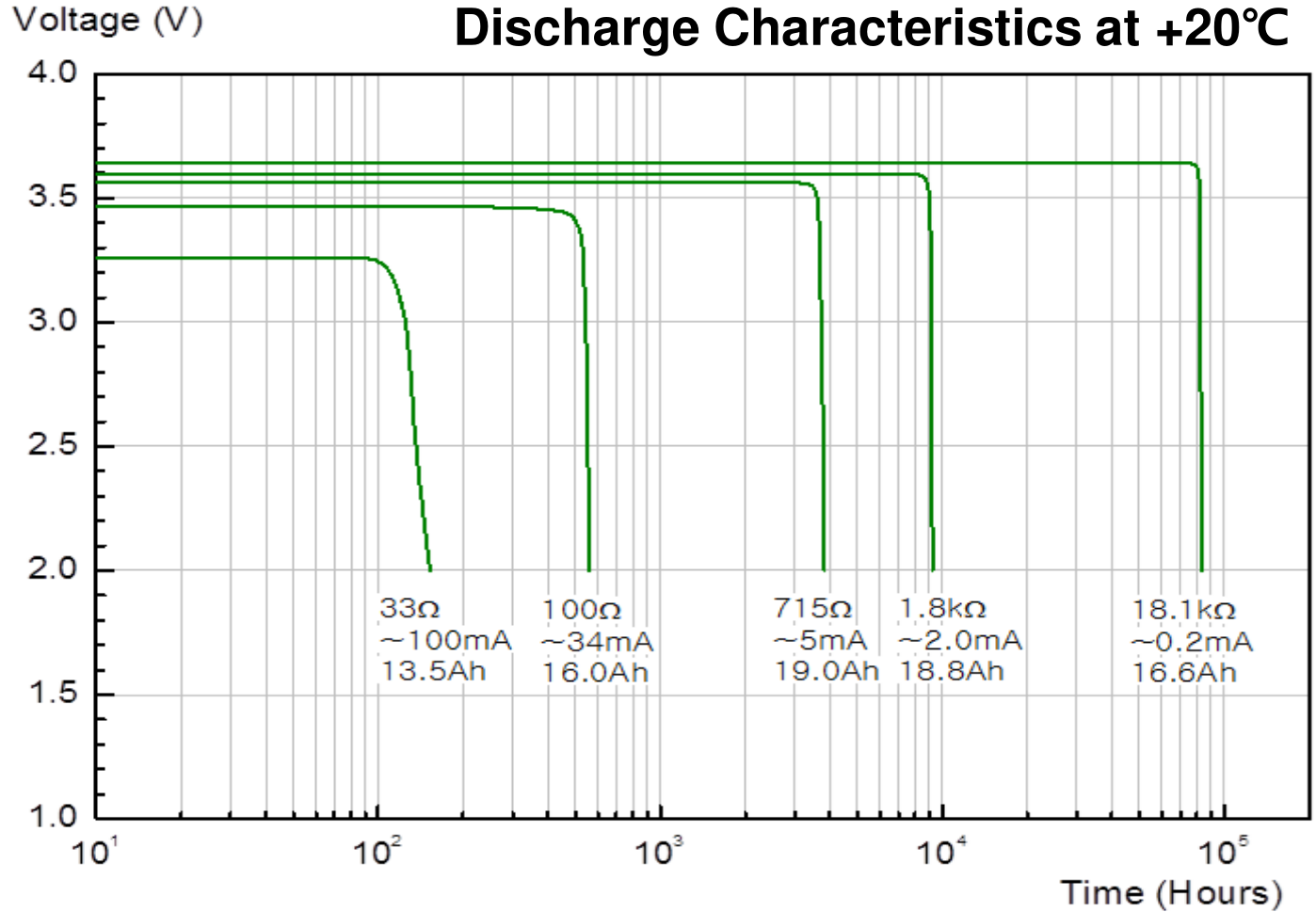

D Cell Battery Discharge Characteristics at 20 C

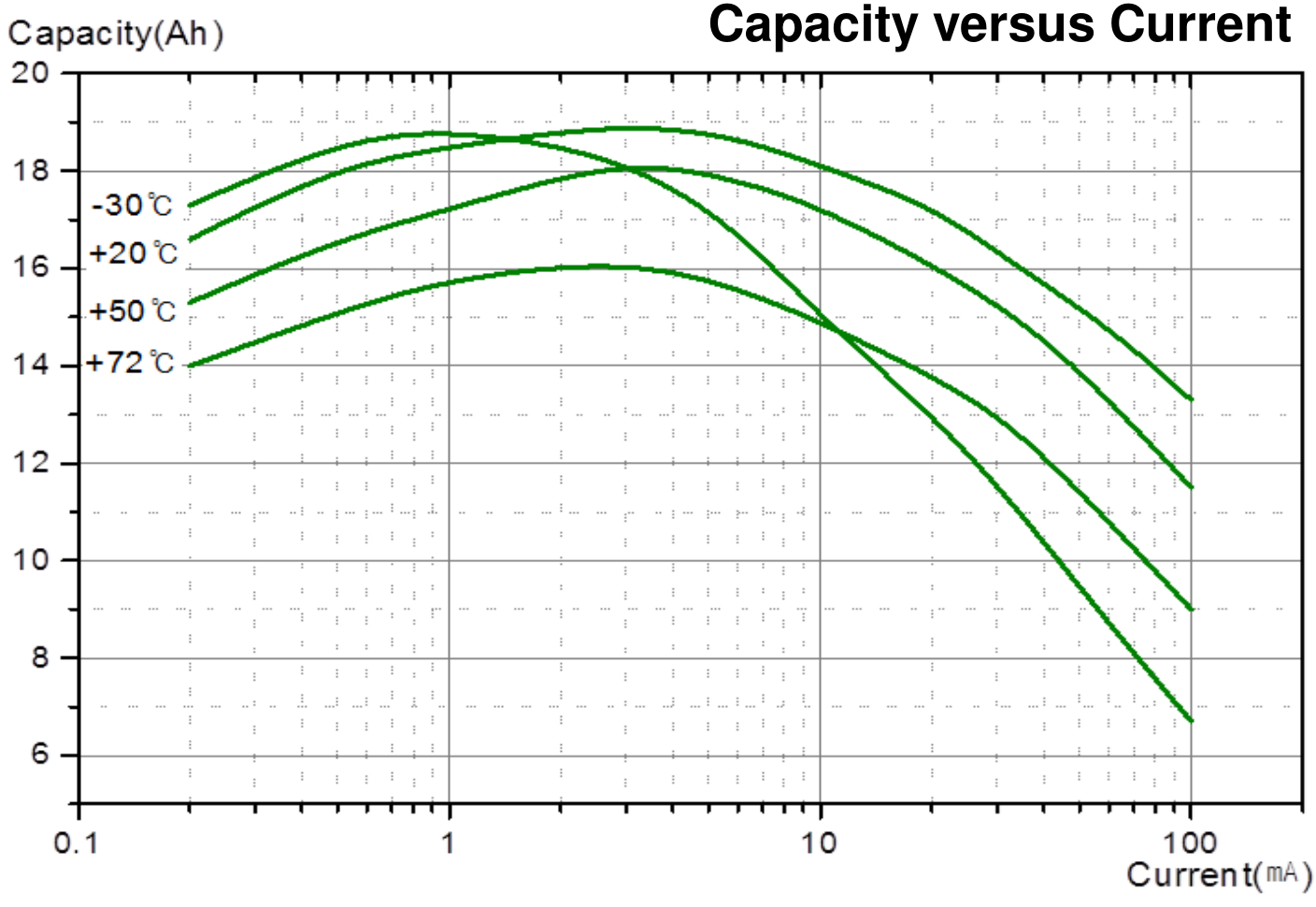

D Cell Battery Capacity versus current
  • The battery is designed specifically for applications requiring low background currents combined with high current pulses.
  • The High Pulses battery combines the inherent benefits of bobbin type Lithium Thionyl Chloride cell with a novel hermetically sealed XLC.
  • The addition of the XLC enhances the performance of the Lithium.
  • Thionyl Chloride cell to meet large pulse current requirements thus
    providing greater performance and safety in comparison to jellyroll
    construction spirally wound type batteries.
